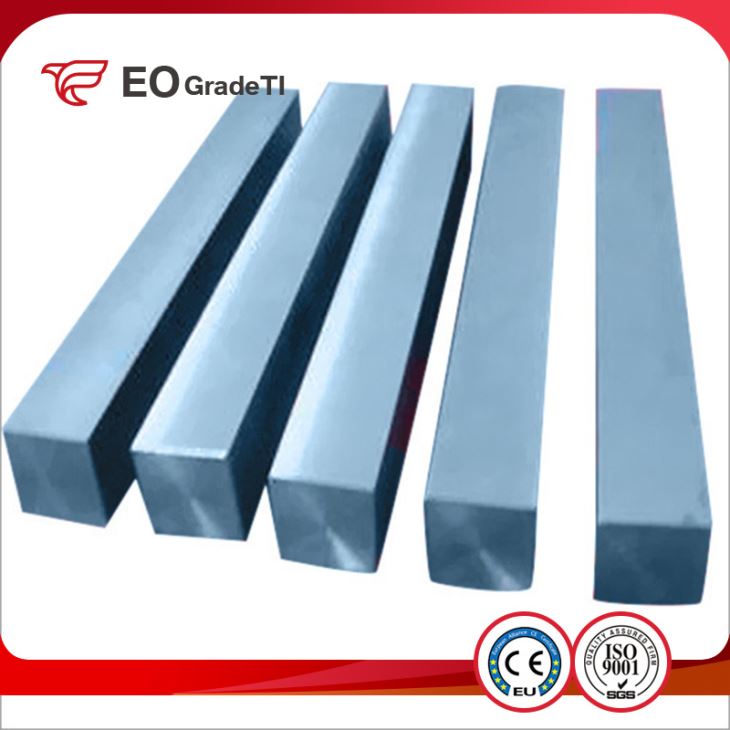

Titanium Alloy Square Bar

Product: Titanium Alloy Square Bar
Grade: Grade 1, Grade 2, Grade 5, Grade 7, Grade 9, Grade 12
Standard: ASTM B348, ASTM F136, ASTM F67
Types: Titanium Alloy Rods
Production Process: Forging, Rotary Forging, Extruding, Rolling, Drawing
Production Methods: Forging Machining, Hot Rolling, Machining
Detection Mode: We can according to customer's need to do the the ray testing, coloring, Magnetic particle testing, hydrostatic testing
Supply States: Annealed (M)
MOQ: 10 Kg
Payment Method: T/T, L/C, Paypal, Western Un

Product Details

Product Detail

Titanium Alloy Square Bar Chemical Composition
Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
GR 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/
GR 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/
GR 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/
GR 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/
GR 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/
GR 12	0.03	0.08	0.125	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Titanium Alloy Square Bar Physical Properties
Grade	State	Tensile Strength(min)		Yield Strength(min)		Elongation (%)
Grade	State	Ksi	MPa	Ksi	MPa	Elongation (%)
GR 1	(M)Annealed	35	240	20	138	24
GR 2	(M)Annealed	50	345	40	275	20
GR 5	(M)Annealed	130	895	120	828	10
GR 7	(M)Annealed	50	345	40	275	20
GR 9	(M)Annealed	90	620	70	438	15
GR 12	(M)Annealed	70	438	50	345	18
