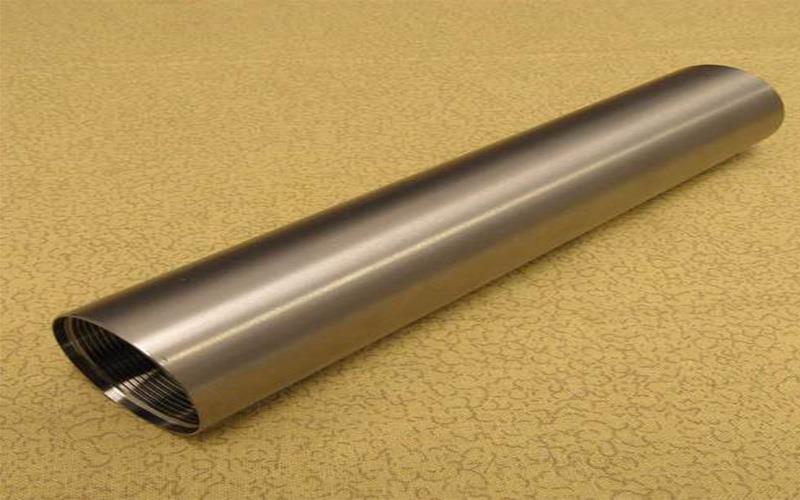

Grade 9 Titanium Welded Tubes

Product: Grade 9 Titanium Welded Tube
Materials: Titanium Alloy
Technique: Free forging, Die forging, Rotary swaging, Precision forging, Weld
Grade: Grade 9
Standard: ASTM B337, ASTM B338, ASTM B861
Types: Titanium Alloy Welded Pipes
Process: Welded
Supply States: Annealed (M)
MOQ: 50 Kg
Payment Method: T/T, L/C, Paypal, Western Union

Product Details

Product Details

Grade 9 Titanium Welded Tube Chemical Composition
Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
GR 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal

Grade 9 Titanium Welded Tube Physical Properties
Grade	State	Tensile Strength(min)		Yield Strength(min)		Elongation (%)
		Ksi	MPa	Ksi	MPa
GR 9	(M)Annealed	90	620	70	438	15

Grade 9 Titanium Welded Tube Product Specifications
Processing	OD (Outside Diameter) (mm)	Wall Thickness (mm)	Length (mm)
Welded Tubes	19.0-630.0	1.0-10.0	Max. 12000



Product Application

Grade 9 Titanium Welded Tube Application:

Architecture, medical, marine, processing & chlorate manufacturing, dimensional stable anodes and desalination.


Packing:

1. Packed with wooden case
2. Cardboard case
3. According to the requirements of customers

Shipment type:

1. Sea Freight
2. Air Cargo
3. Express delivery
4. Land Transportation

Our Service

Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
